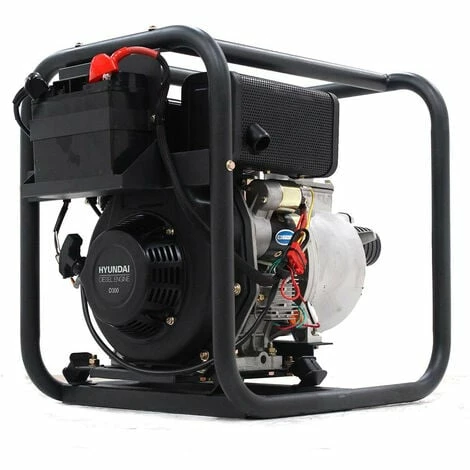

Hyundai DHY80E 80mm 3″ Electric Start Diesel Water Pump

Features

• Weight: 61.0
• Colour: Red
• Fuel: Diesel
• Max delivery head: 25.0
• Water type: Domestic water

Hyundai DHY80E 80mm 3″ Electric Start Diesel Water Pump

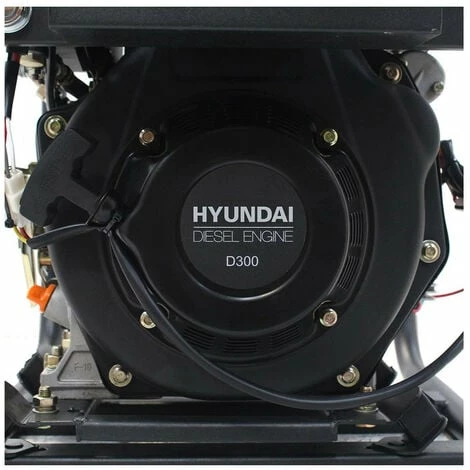

Powered by a 296cc Hyundai D300 diesel engine which produces 5.5hp, this diesel water pump is ideal for commercial, domestic and agricultural pumping applications. It features electric start functionality which affords an easy start every single time, and provides a maximum flow rate of 60,000 litres per hour, enabling you to rapidly transfer huge collections of clean water through the large 3″ (80mm) inlet and outlet.

Equipped with a 3.6-litre fuel tank which provides a long-running time, the DHY80E will see you from start to finish on even the largest of jobs. Designed to be used primarily in freshwater, the DHY80E can pump particles up to 9mm in diameter and it can be powered by red diesel which keeps the running costs even lower.

Weighing 61kg, this is a relatively lightweight water pump that is built with transportation and storage in mind. The sturdy open frame protects the pump from knocks and bumps and also functions as a convenient carry handle. It gives a suction lift of 6m, and a total lift of 25m.

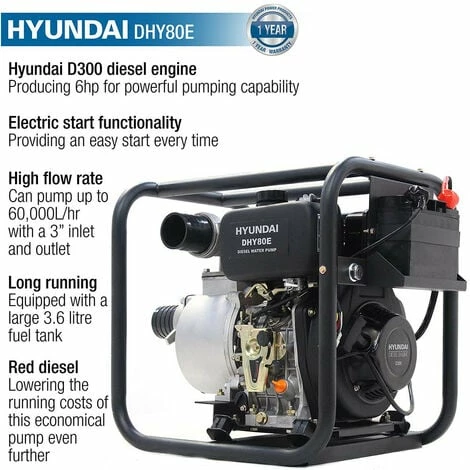

DHY80E Features:

• Hyundai D300 diesel engine: Producing 6hp for powerful pumping capability.
• Electric start functionality: Providing an easy start every time.
• High flow rate: Can pump up to 60,000L/hr with a 3” inlet and outlet.
• Long running: Equipped with a large 3.6 litre fuel tank.
• Red diesel: Lowering the running costs of this economical pump even further.

DHY80E Specifications:

• Fully Assembled Dimensions L x W x H (mm): 590 x 490 x 590
• Drive Type: Direct Drive
• Engine Model Size (cc): 296
• Engine Model Type: Hyundai D300
• Fuel Tank (L): 3.6
• Fuel Type: Diesel
• Impeller Type: Cast Iron
• Inlet (inches / mm): 3/80
• Maximum Flow Rate (L/min): 1000
• Net Installed Power @ 3600rpm (hp/kw): 5.5/4.0
• Noise Level (dB): 109
• Oil Capacity (L): 1.1
• Outlet (inches / mm): 3/80
• Pump Type: Aluminium Housing
• Starting System Method: Recoil/Electric
• Suction Lift (m): 6
• Total Lift (m): 25
• Engine Model: D300
• Max Flow Rate (litres/hr): 45
• Max Head (m): 25
• Max Solids*: 9mm

What is included:

• 1x DHY80E 80mm 3″ Electric Start Diesel Water Pump
• 1x Filter
• 1x Spark Plug Spanner
• 1x User Manual
