Hyundai DHYT80E 80mm 3″ Diesel Trash Water Pump

Features

• Weight: 73.0
• Fuel: Diesel
• Engine capacity: 296.0
• Water type: Dirty water

Hyundai DHYT80E 80mm 3″ Diesel Trash Water Pump

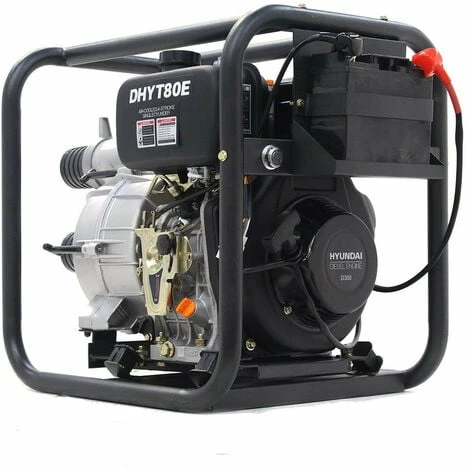

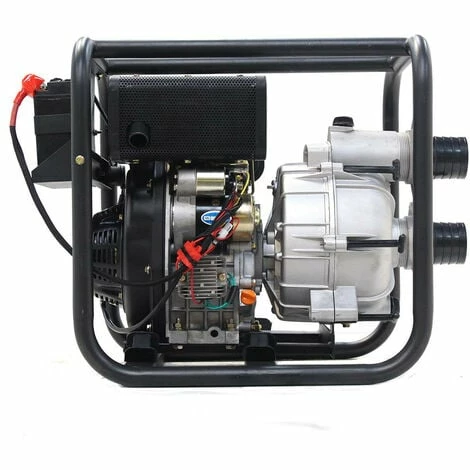

The DHYT80E is an electric start diesel-powered trash water pump, designed to confront the challenges of unrefined and dirty water. Made with a tougher pump than the clean water pumps in the Hyundai range, particles and debris up to 35mm can be pumped easily by the DHYT80E without the risk of causing damage to the internal components.

Powered by a robust and reliable 296cc D300 diesel engine and equipped with 3” (80mm) inlet and outlets, the DHYT80E is able of pumping 880L/min, which is a massive 52,800L/hr. This fantastic pumping performance makes the DHYT80 the perfect diesel trash water pump for even the most demanding of jobs. The benefit of being powered by diesel rather than electric is the capacity to take this machine away from locations that are powered by the mains supply, enabling you to pump wherever the job at hand requires.

Weighing only 73kg the DHYT80E is relatively lightweight for a machine of this size and power and can be transported from one location to another with assistance. The open frame that the main unit is housed in also helps with the portability of the DHYT80E as it doubles up as a handle for the user to hold on to. The compact design means that this machine can easily be stored in a van, shed, workshop, garage, etc.

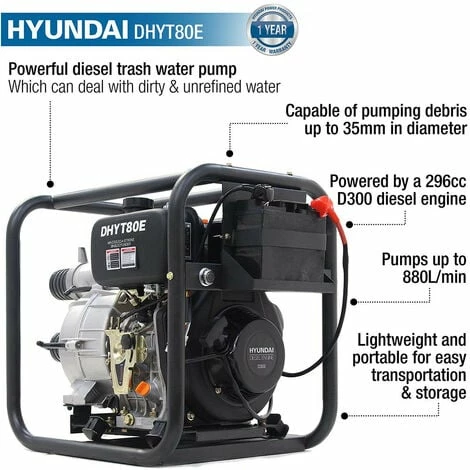

DHYT80E Features:

• A powerful diesel trash water pump which can deal with dirty and unrefined water.
• Capable of pumping debris up to 35mm in diameter.
• Powered by a 296cc D300 diesel engine.
• Pumps up to 880L/min.
• Lightweight and portable for easy transportation and storage.

DHYT80E Specifications:

• Fully Assembled Dimensions L x W x H (mm): 590 x 490 x 590
• Boxed Dimensions L x W x H (mm): 600 x 500 x 600
• Drive Type: Direct Drive
• Engine Model Size (cc): 296
• Engine Model Type: Hyundai D300
• Fuel Tank (L): 3.6
• Fuel Type: Diesel
• Impeller Type: Cast Iron
• Inlet (inches / mm): 3/80
• Maximum Flow Rate (L/min): 880
• Maximum Power @ 3000rpm (hp/kw): 5.5/4.0
• Maximum Power @ 3600rpm (hp/kw): 6.0/4.4
• Net Installed Power @ 3000rpm (hp/kw): 5.0/3.68
• Net Installed Power @ 3600rpm (hp/kw): 5.5/4.0
• Noise Level (dB): 109
• Oil Capacity (L): 1.1
• Outlet (inches / mm): 3/80
• Pump Type: Aluminium housing

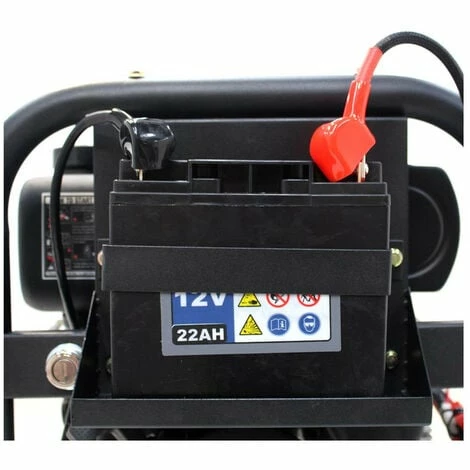

• Starting System Method: Recoil/Electric
• Suction Lift (m): 6
• Total Lift (m): 25
• Engine Model D300
• Max Flow Rate (litres/hr): 60
• Max Head (m): 24
• Max Solids*: 35mm

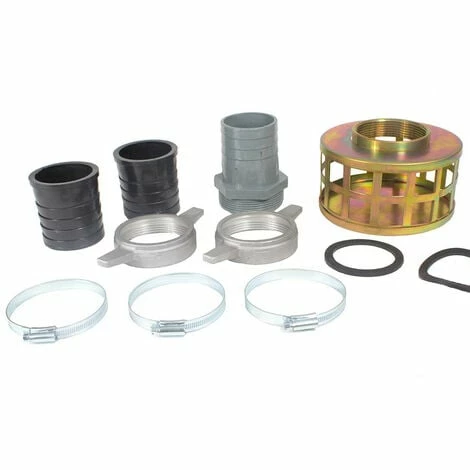

What is included:

• 1x DHYT80E 80mm 3″ Diesel Trash Water Pump
