Hyundai HY30100V 100 Litre V-Twin Direct Drive Air Compressor

Features

• Weight: 60.0
• Power: 2200.0
• Voltage: 230.0
• Rotational speed: 2850.0
• Pressure: 8.0
• Shape: Bar
• Tank capacity: 100.0
• Type of water filter: Filtration system
• Eco responsibility: Connected

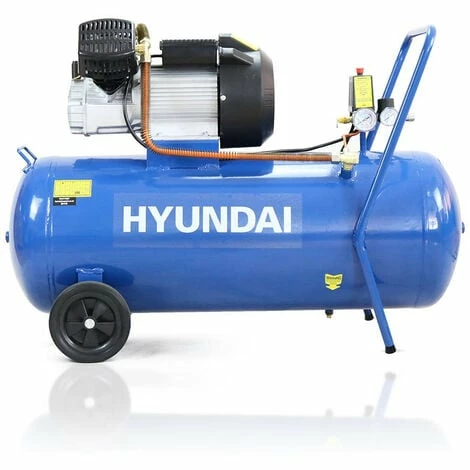

Hyundai HY30100V 100 Litre V-Twin Direct Drive Air Compressor

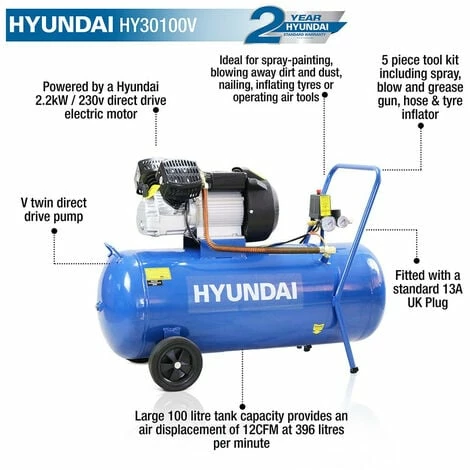

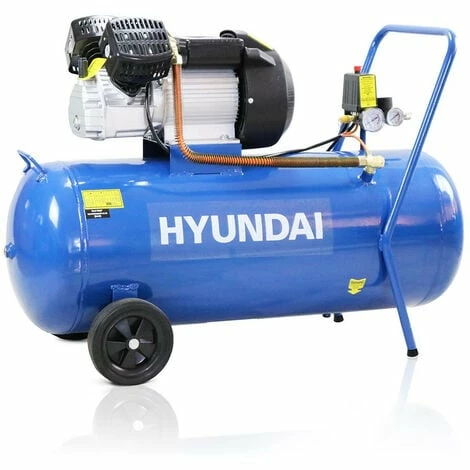

The Hyundai HY30100V is a powerful yet compact 3hp V-twin cylinder direct drive air compressor from Hyundai. The V-Twin pump features long lasting cast iron cylinders and aluminium cylinder heads for improved cooling, and comes ready to go including oil. The V-twin direct drive design connects the motor straight to the pump increasing efficiency, allowing all the 3hp produced by the motor to be used to drive the compressor air pump producing more power in what is a very compact design.

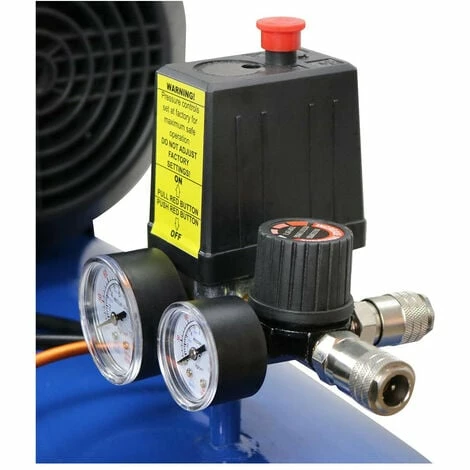

The 100 litre tank capacity provides a constant supply of air for airtools with 14CFM, 396 litres per minute air displacement. Twin quick release air outlets for increased versatility allow two air-lines / tools to be connected at the same time. The pressure regulator allows the outlet pressure to be increased or decreased and the two pressure gauges measure pressure in the tank and the outlet pressure. It’s also fitted with an over pressure safety valve, the automatic pressure control system switches the compressor off when the maximum pressure of 8 bar has been reached and restarts it when pressure drops to 6 bar.

HY30100V Features:

• Powered by a Hyundai 2.2kW 3hp 230v motor.
• V-twin direct drive pump fitted with a standard 13A UK Plug.
• 100 litre tank capacity provides an air displacement of 14CFM or 396 litres per minute and 8bar / 116psi.
• Fitted with twin Euro quick release connectors.

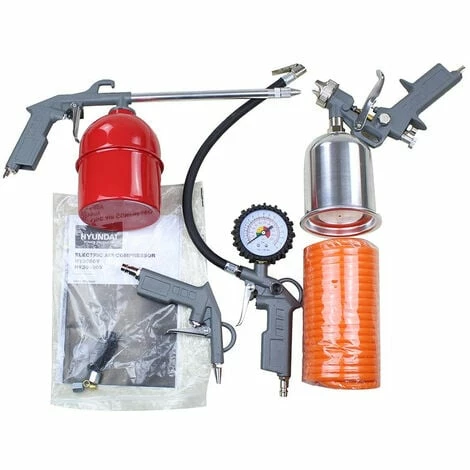

• 5 piece tool kit including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.
• Includes twin pressure gauges, automatic cut out switch, safety valve and pressure regulator/ adjuster.
• Covered by Hyundai 2 year warranty.
• Full spares available to maintain your air compressor for years to come.

HY30100V Specification:

• Air Displacement(Cubic Feet Per Minute): 396L/Min
• Air Outlet: Euro Quick Release
• Dimensions LxWxH: 1020 x 430 x 730mm
• Discharge Pressure: 8bar / 116psi
• Max Pressure: 8bar / 116psi
• Model: HY30100V
• Motor Power: 2.2kW / 3hp
• Motor Speed (RPM): 2850rpm
• Net Weight: 60kg
• Sound Rating: 70 at 7 Metres
• Tank Size: 100L
• eAC Voltage: 230v
• Pump (RPM): 2850
• Air Flow – FAD (L/min): 200

What is Included:

• 1 x Hyundai HY30100V 100 Litre V-Twin Direct Drive Air Compressor
