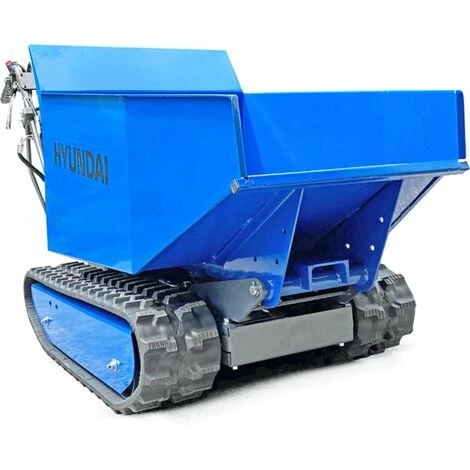

Hyundai HYTD500 196cc Petrol 500kg Payload Tracked Mini Dumper

Hyundai HYTD500 196cc Petrol 500kg Payload Tracked Mini Dumper

The Hyundai HYTD500 is a heavy-duty mini dumper with tracked drive system from the Hyundai construction range. The dumper is suitable for a wide range of loading and transporting jobs including construction sites, agricultural, landscaping, garden and allotment use. The Hyundai tracked dumper can accommodate all kinds of loads on any terrain for various applications.

The HYTD500 power barrow features manual gear operation with 3 forward and one reverse gear. The drive is controlled by a single lever and left and right track-stop/brake levers for turning make this very manoeuvrable. The dumper also features an ergonomic design combined with speed and high productivity, with the skid steer system allows you to spin nearly on the spot with no need for lifting or dragging.

The strong steel front skip has a large 500kg capacity, great for all types of different materials and perfectly balanced when working with a full load, and with the power from the Hyundai 196cc 6.5hp petrol engine the HYTD500 has enough power to carry loads even at an incline of 20 degrees.

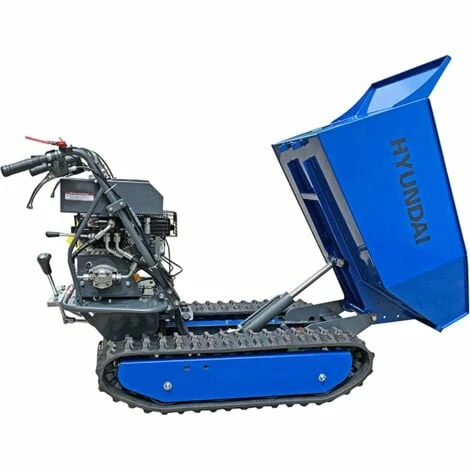

Easy to transport the HYTD500 features bottom protection plate to avoid damage by stones. With rapid one person tipping operation controlled by the single lever hydraulic rapid tip system.

Covered by Hyundai 3 year warranty.

HYTD500 Features:

• 500kg capacity
• Handles inclines of up to 20 degrees.
• Off road tyres.
• 3 forward and one reverse gear.
• Hyundai petrol engine.
• Heavy duty design and hydraulic tipping mechanism.
• Covered by Hyundai 3 year warranty.

HYTD500 Specification:

• Engine Type: Hyundai IC200 OHV 4-Stroke
• Engine Size: 196cc / 6.5hp
• Normal Power: 4.8kW
• Engine Speed: 3600rpm
• Fuel Tank Capacity: 3.6L

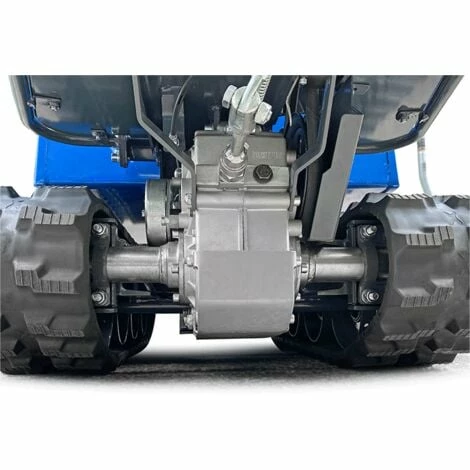

• Transmission: Transaxle 3 Forward / 1 Reverse Speed
• Fuel Type: Unleaded Petrol
• Load Capacity: 500kg
• Oil Type: SAE30 or 15W40 Engine Oil
• Engine Oil Capacity: 600ml
• Sound Pressure Level: 81.5dB(A)
• Measured Noise Level: 96.8dB(A)
• Guaranteed Noise Level: 101dB(A)
• Dimensions L X W X H: 1610 x 710 x 1030mm
• Net Weight: 255.5kg
• Warranty: 3 Year

What is Included:

• 1 x Hyundai HYTD500 Tracked Dumper
• 1 x Spark Plug Spanner
• User Manuals
